AISUN

For Home Charging

Portable EV Charger American Standard

16A | 32A | 40A

Emergency Backup
Cost-Effective
Safety Protections
Flexible and Smart

Get a Quote

Description
Features
Applications
Specification
Accessories
Guidelines
Related Products

High Current Charging

Supports up to 32A for faster charging, with backward compatibility for lower currents.
Ergonomic Design

The charger features a 103mm handle with rounded corners and a non-slip line, designed to meet European and American ergonomic standards.
Safe Charging

Equipped with comprehensive safety features including leakage, over-temperature, surge, over-current protections, automatic power-off, under-voltage, and over-voltage protections.

Features

Temperature Detection

Avoid hidden dangers caused by high temperature.

Various Charging Protections

Ensure the stable operation of products.

Cost Savings

Can make an appointment to charge.

Various Scenarios

Residential areas, commercial places, industrial parks, enterprises and institutions, etc.

Durable Thermoplastic Material

The outer shell is made of durable thermoplastic material, providing longevity and reliability.

Control Box

The control box is waterproof, dust-proof, and pressure-proof.

Applications

Home Use

Easily charge your EV at home with this portable and reliable charger.
Travel

Ideal for EV owners on the go, ensuring your vehicle remains charged wherever you are in the United States.
Public Charging

Compatible with American standard charging stations, providing flexibility and convenience.

Specification

EVSEP-7-UL1

EVSEP-9-UL1

EVSEP-11-UL1

Electrical Specifications

Operating Voltage	90-265Vac	90-265Vac	90-265Vac
Rated Input/ Output Voltage	90-265Vac	90-265Vac	90-265Vac
Rated Charge Current(max)	32A	40A	48A
Operating Frequency	50/60Hz	50/60Hz	50/60Hz
Shell Protection Grade	IP65	IP65	IP65

Communications & UI

HCI	Indicator + OLED 1.3” display	Indicator + OLED 1.3” display	Indicator + OLED 1.3” display
Communication Method	WiFi 2.4GHz/ Bluetooth	WiFi 2.4GHz/ Bluetooth	WiFi 2.4GHz/ Bluetooth
General Specifications
Operating Temperature	-40℃ ~+80℃	-40℃ ~+80℃	-40℃ ~+80℃
Storage Temperature	-40℃ ~+80℃	-40℃ ~+80℃	-40℃ ~+80℃
Product Length	7.6 m	7.6 m	7.6 m
Body Size	2229270 mm	2229270 mm	2229270 mm
Product Weight	3.4 kg (N.W.) 4.1 kg (G.W.)	3.6 kg (N.W.) 4.3 kg (G.W.)	4.5 kg (N.W.) 5.2 kg (G.W.)
Package Size	411336120 mm	411336120 mm	411336120 mm
Protections	leakage protection, over temperature protection, surge protection, Over-current protection, automatic power-oﬀ, undervoltage protection, Over-voltage protection, CP failure

Inquire Now

Appearance of EV Charger

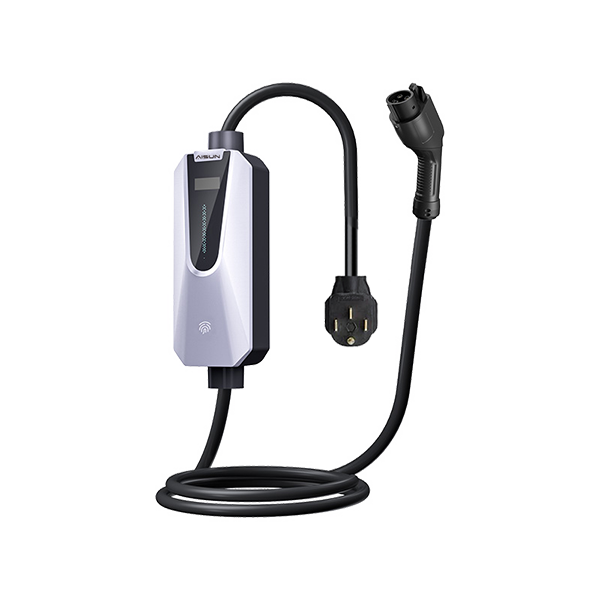

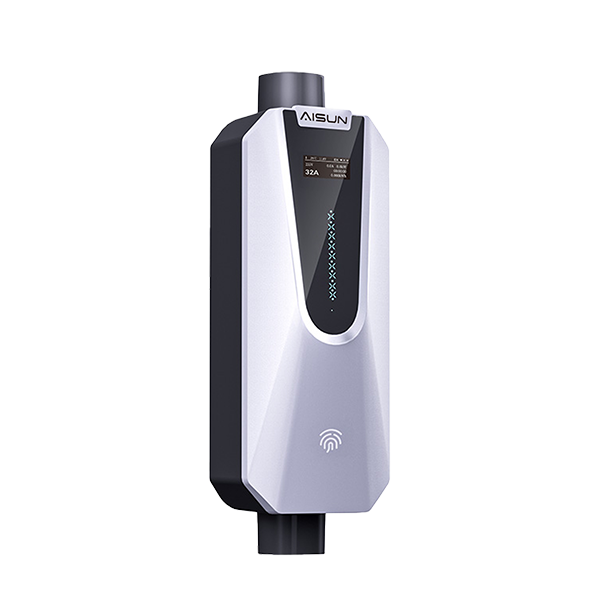

The Portable EV Charger American Standard is a compact, durable device with a sleek black design and LED status indicators. It's lightweight, portable, and meets American safety standards for reliable EV charging anywhere.

Plug

American Standard
Socket

American Standard
