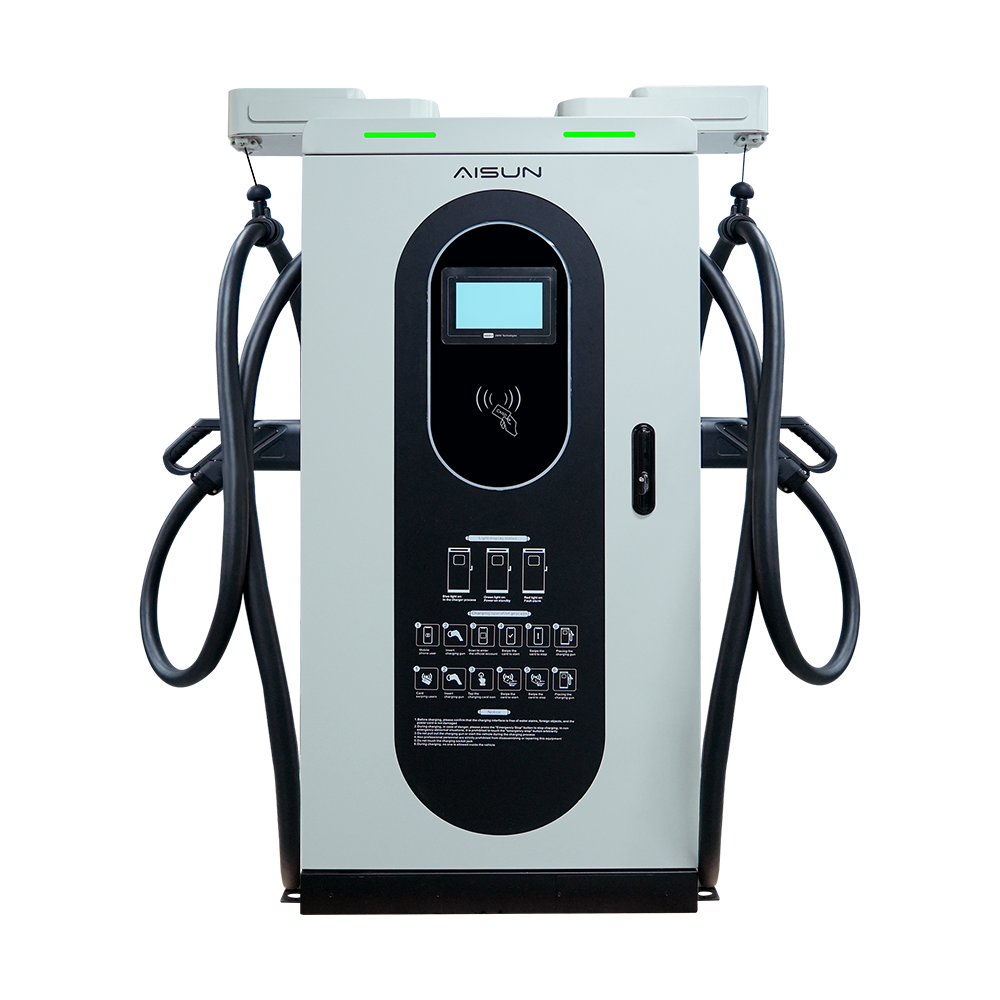

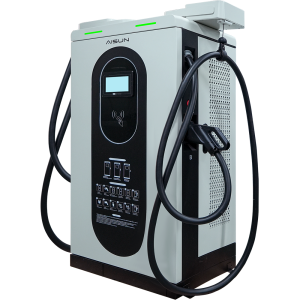

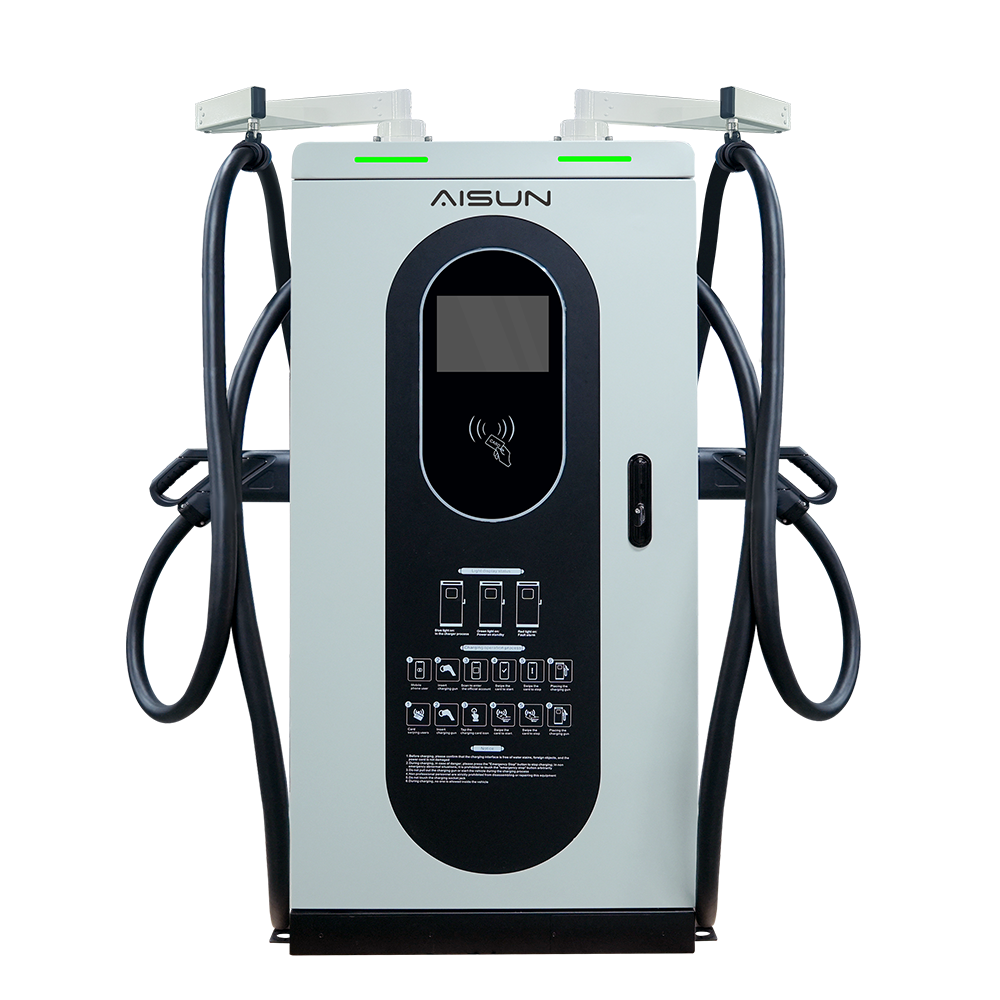

DC EV Charger European Standard

80kW | 120kW | 160kW | 200kW | 240kW

Safety Protections
High Power Output
Faster Charging

Get a Quote Brochure

Description
Features
Applications
Specification
Accessories
Guidelines
Related Products

Wide Voltage Range

Offers a flexible output voltage range of 200–1000V, compatible with all EV types—from passenger cars to commercial vans and electric buses.
Efficient High Power Delivery

Delivers ultra-fast charging power from 80kW to 240kW—perfect for large parking facilities, residential complexes, and commercial areas like shopping malls.

Learn the Basics Through Videos

Watch the video to learn the basics of AiPower Charger design and how the system works.

Features

Intelligent Power Distribution

Dynamically allocates power based on demand, with each module operating independently to maximize efficiency.

Stable High-Voltage Input

Supports high input voltage tolerance of 400V ±15%, ensuring stable and reliable charging even during minor voltage fluctuations.

Live Station Monitoring

Ongoing status tracking optimizes charger efficiency and availability.

Flexible Modular Design

Scalable power output from 80kW to 240kW with customizable configurations to meet diverse charging requirements.

Smart Cooling Technology

Fans operate independently, adjusting dynamically to real-time conditions to minimize noise and enhance cooling efficiency.

Smart Load Connectivity

Optimizes connection to the load system for smooth energy transfer and enhanced system stability.

Applications

Specification

Model

EVSED-80EU

EVSED-120EU

EVSED-160EU

EVSED-200EU

EVSED-240EU

Product Specification

Rated Output Voltage	200-1000VDC
Rated Output Current	20-250A
Rated Output Power	80kW	120kW	160kW	200kW	240kW
Number of Rectifier Modules	2pcs	3pcs	4pcs	5pcs	6pcs
Rated Input Voltage	400VAC+15%VAC (L1+L2+L3+N=PE)
Input Voltage Frequency	50Hz
Input Max. Current	125A	185A	270A	305A	365A
Conversion Efficiency	≥ 0.95
Display	10.1 inch LCD screen & touch panel
Charging Interface	CCS2
User Authentication	Plug&charge/ RFID card/ APP
Open Charge Point Protocol	OCPP1.6
Network	Ethernet, Wi-Fi, 4G
Cooling Mode	Forced air cooling
Working Temperature	-30℃ - 50℃
Working Humidity	5% ~ 95%RH without condensation
Protection Level	IP54
Noise	<75dB
Altitude	Up to 2000m
Weight	304KG	321KG	338KG	355KG	372KG
Support Language	English (Custom Development for Other Languages)
Protection	Over current, Under voltage, Over voltage, Residual current, Surge, Short circuit, Over temperature, Ground fault
