Charging Connector Types Explained: Your Complete EV Plug Guide

With electric vehicles (EVs) becoming increasingly popular worldwide, the importance of robust and compatible charging infrastructure grows significantly. EV connectors—comprising plugs, sockets, and cables—play a vital role in ensuring seamless and efficient charging. Different regions, manufacturers, and charging levels adopt a variety of charge connector types, making it essential for EV owners and charging station operators to understand these differences.

This article explains the most common EV connector types and how they impact your charging experience.

EV Charging Basics: AC vs DC Charging

Electric grids supply alternating current (AC), while EV batteries require direct current (DC) to charge. This difference results in two main charging approaches:

• AC Charging: The vehicle’s onboard charger converts AC to DC to charge the battery. AC charging is typically slower but widely used for home and workplace charging.
• DC Fast Charging: The charging station converts AC to DC externally and supplies DC directly to the battery, enabling faster charging speeds.

This distinction underpins why choosing the right EV charger connector is crucial for safe and efficient energy transfer between the charging station and the vehicle.

Common EV Connector Types

Detailed Overview of Common EV Connectors

SAE J1772 (Type 1)

Widely used in North America and Japan, this connector supports single-phase AC charging up to 19.2 kW. It does not have an automatic locking feature, which means the plug must be manually held in place during charging.

Type 2 (Mennekes)

The standard connector across Europe, supporting both single-phase and three-phase AC charging with power levels up to 22 kW. Type 2 connectors feature automatic locking and a unified communication protocol, promoting global manufacturing consistency and enhancing user safety.

Combined Charging System (CCS)

CCS combines AC connectors with additional DC pins to enable fast charging.

• CCS Type 1 is dominant in North America and supports up to 360 kW DC charging.
• CCS Type 2 is Europe’s fast charging standard, supporting currents often exceeding 200A and incorporating liquid-cooled cables to handle the heat generated by high power transfer.

CHAdeMO

Originating from Japan, CHAdeMO supports DC fast charging up to 400 kW. It requires separate AC and DC ports and is notable for ongoing collaboration with GB/T standards on the next-generation ChaoJi standard.

GB/T Standard

China’s national EV charging standard includes specifications for both AC and DC charging, with DC fast charging reaching up to 237.5 kW. GB/T works jointly with CHAdeMO on developing the ChaoJi standard to unify fast charging technologies.

Safety Mechanisms

All EV connectors incorporate vital safety features, including protections against overcurrent, overvoltage, overheating, and ground faults. These mechanisms are designed to comply with international safety standards such as IEC 61851, ensuring safe charging for users while protecting both vehicles and charging infrastructure.

Charging Power and Speed Influencing Factors

Charging speed depends on several factors:

• Connector type and its power rating
• Charging station output voltage and current capability
• Vehicle’s onboard charger capacity (for AC charging)
• Charging cable quality and length
• Environmental conditions such as ambient temperature

Proper selection and compatibility of connectors, chargers, and cables optimize charging efficiency and help extend battery life.

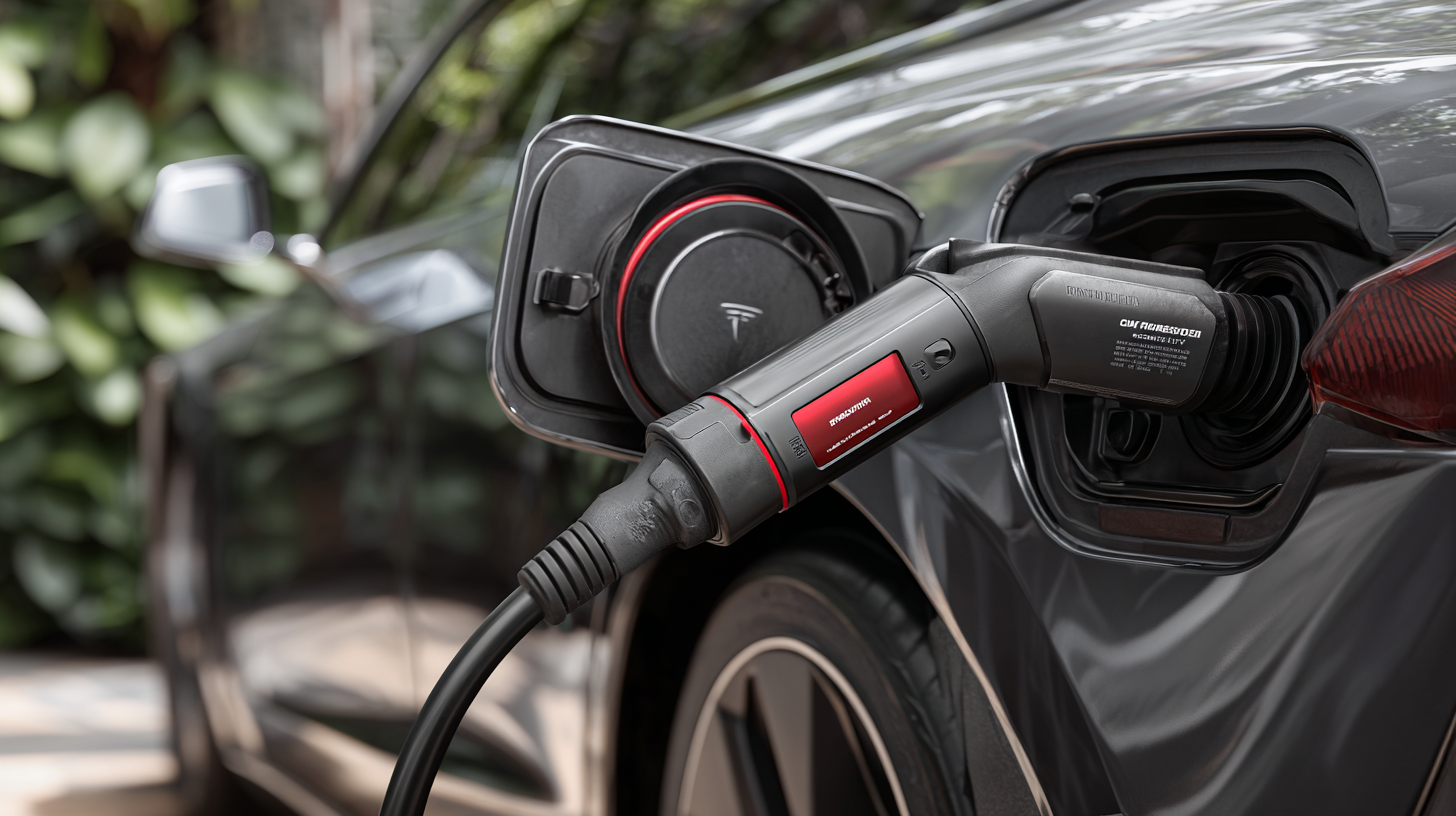

EV Charger Adapters: Enhancing Compatibility

EV Charger Adapters are essential for bridging compatibility gaps between different connector standards, allowing EV owners to charge their vehicles using diverse infrastructure without being limited by the original manufacturer’s connector type.

Featured EV Charger Adapters

Our adapters are designed for durability and reliable performance across a wide temperature range, ensuring effective home and public charging solutions.

Conclusion

Understanding the variety of EV charging connectors and their specifications is fundamental to building a convenient and efficient EV charging experience. Choosing the correct connector and compatible adapters ensures optimal charging speed, safety, and compatibility with available infrastructure.

As EV technology continues to evolve, adapters and connector standards will remain critical in bridging the gaps between diverse EV models and charging networks.
